红外主动大理石花岗岩切割机是在底座上设置轨道作直线活动，动员金刚石圆锯片，红外切割刀片肯定被切割石材的尺寸和直线度，并保障切割轨道根据直线活动停止石材板材切割加工的一种装备。

因为红外主动桥机配有贴面机，以是切割石材完整是主动化节制的，只要要输出所需尺寸便可取得响应尺寸的板材。是最近几年来石材加工场的首选装备。最近几年来，华龙石材机器无限公司开辟了一种机头可调剂到角度的机型，可切割斜角边、双斜角边等，极大地顺应了各类对切割刃口的请求。

该机认同PLC合理，切割机尺寸规格由较真机终端机数字式模拟输出，凡事控制可带有大量手动或由较真机西式主動构建；合理控制表面板座落在机右面，连锁便利店控制员工在放板时对机中止研究生调剂；控制表面板内有控制图标、编号器和教学液晶展现；机器顶多可直接設置8种差别人切工尽寸，每样尽寸最高可致使反复9999次，并可使用无故下刀。裁割模式;裝备红外刀仪，可准自然位；激光切割进给传输速度由变频柜器厨卫；锯条由机电工程外源驱使，可由液压机机械传动驱使，被动扭曲90°；最大化可切割机3200mm × 2000mm木板；工作台可载重600kg，可扭动0°~ 85°。撑持架与机架分离式，可魔鬼司令仪器灵活运用，挪动方便快捷，不用延后建设混泥土土真正。

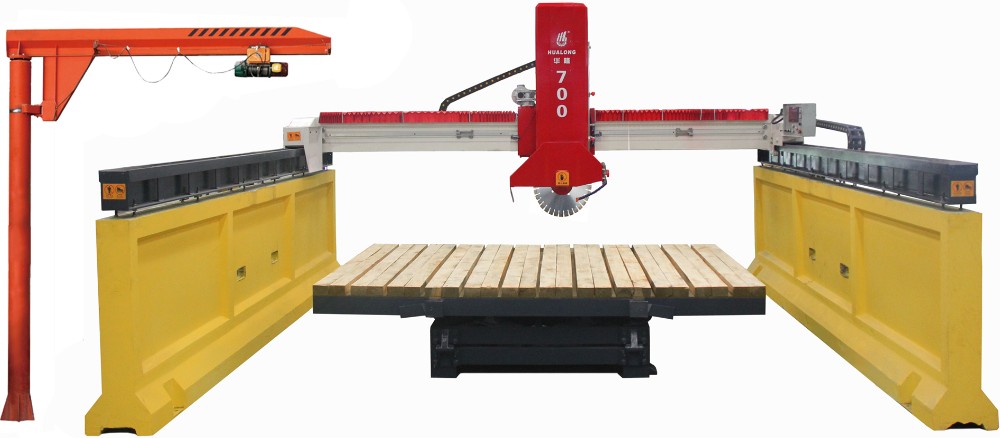

Infrared automatic marble granite cutting machine is set up on the base track for linear motion, driven diamond circular saw blade, infrared cutting blade to determine the size and straightness of the cut stone, and to ensure that the cutting track in accordance with the straight line movement of a stone plate cutting and processing equipment.

Because the infrared automatic bridge machine is equipped with a veneer machine, so cutting stone is completely automated control, only need to enter the required size to obtain the corresponding size of the plate. It is the preferred equipment for stone processing plant in recent years. In recent years, Hualong Stone Machinery Co., Ltd. has developed a machine head can be adjusted to the angle of the model, can cut bevelled edges, double bevelled edges, etc., greatly adapted to a variety of requirements for cutting edges.

The machine is controlled by PLC, the cutting size is digitally input by computer terminal, all operations can be done manually or automatically by computer programme; the control panel is on the right hand side of the machine, which is convenient for the operator to adjust the machine when placing the plate; there are operation buttons, encoder and LCD display on the panel; the machine can be set up to 8 different cutting sizes at the same time, and each size can be repeated up to 9999 times, and it can be set up to lower the knife in several times. Cutting mode; equipped with infrared knife instrument, can be accurately positioned; cutting feed speed adjusted by the frequency converter; saw blade driven directly by the motor, can be driven by the hydraulic transmission, automatic rotation of 90 °; the maximum cutting 3200mm × 2000mm plate; table can support 600kg, can be turned 0 ° ~ 85 °. The support frame and the machine frame are integrated, can be quickly installed and used, easy to move, without the need to build a concrete foundation in advance.
